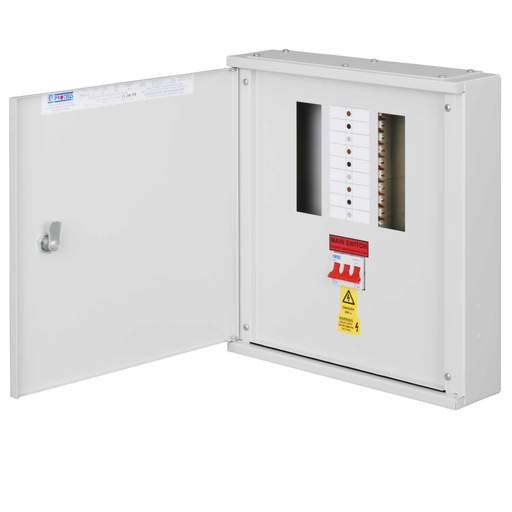

Proteus 6 Way TP+ N Type B Distribution Board with 125A Isolator Incomer
Part Code: BX6S125
Stock Code: 0051-5032
Proteus 6 Way TP+ N Type B Distribution Board with 125A Isolator Incomer
Part Code: BX6S125
Stock Code: 0051-5032
Features
- TP N distribution board
- Complete with 125A triple pole incomer
- Top and bottom removable glandplates for ease of cutting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Busbar Rating
- 125A
- Cable Entry
- Bottom
- Current Rating
- 125A
- Depth
- 110mm
- Dimensions
- (H)442 mm x (W)410 mm x (D)110 mm
- Door Type
- Metal
- Guarantee
- 1 Year
- Height
- 442mm
- IP Rating
- IPX3
- Incoming Device
- 125A TP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Rolled Cold Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 6
- Packaging Types
- Each
- Product Range
- BX Boards
- Standards
- BS EN 61439-1&3
- Supplied With
- 125A TP Switch Disconnector
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V
- Weight
- 8.00000kg
- Width
- 410mm
