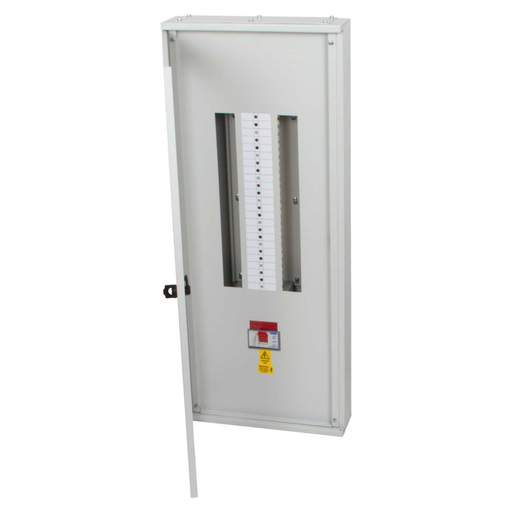

Proteus 16 Way TP+N Type B Distribution Board with 200A Isolator Incomer
Part Code: BX16S2
Stock Code: 0013-9204
Proteus 16 Way TP+N Type B Distribution Board with 200A Isolator Incomer
Part Code: BX16S2
Stock Code: 0013-9204
Features
- TP N distribution board
- Complete with 200A triple pole incomer
- Top and bottom removable glandplates for ease of cutting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Busbar Rating
- 200A
- Current Rating
- 200A
- Depth
- 110mm
- Dimensions
- (H)1000 mm x (W)410 mm x (D)110 mm
- Door Type
- Metal
- Guarantee
- 1 Year
- Height
- 1000mm
- IP Rating
- IP31
- Incoming Device
- 200A TP Isolator
- Incoming Terminal Capacity
- 70mm²
- Lockable
- Yes
- Material
- Full Cold Rolled Steel enclosure for Maximum Robustness
- Mounting
- Surface
- Number of Outgoing Ways
- 16
- Packaging Types
- Each
- Product Range
- BX 3 Phase Boards
- Standards
- BS EN 61439-1&3
- Supplied With
- 200A TP Switch Disconnector
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 400V
- Weight
- 18.00000kg
- Width
- 410mm
