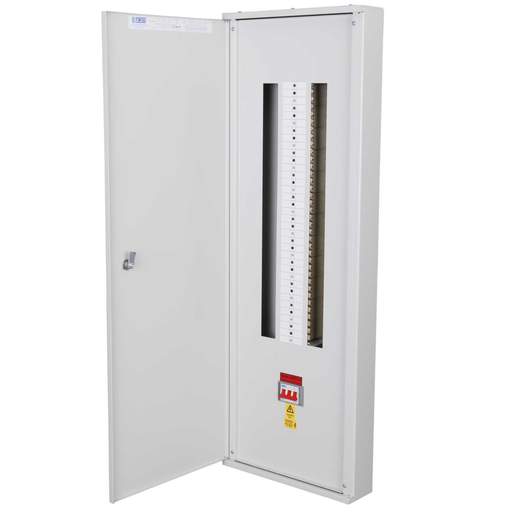

Proteus 24 Way TP+ N MCB Distribution Board with 125A Disconnector Incomer

Part Code: BX24S125

Stock Code: 0051-5047

Proteus 24 Way TP+ N MCB Distribution Board with 125A Disconnector Incomer

Part Code: BX24S125

Stock Code: 0051-5047

Delivery

4 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • TP+N distribution board
  • Complete with 125A triple pole incomer
  • Top and bottom removable glandplates for ease of cutting

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Busbar Rating
125A
Colour
Grey
Current Rating
125A
Depth
110mm
Dimensions
(H)1180 mm x (W)410 mm x (D)110 mm
Door Type
Metal
Finish
Epoxy Powder Coated Paint
Guarantee
1 Year
Height
1180mm
IP Rating
IPX3
Incoming Device
125A TP Isolator
Incoming Terminal Capacity
50mm²
Lockable
Yes
Material
Rolled Cold Steel
Mounting
Wall
Number of Outgoing Ways
24
Packaging Types
Each
Product Range
BX Boards
Standards
BS EN 61439-1&3
Supplied With
125A TP Switch Disconnector
Unspsc V18
39121110
Voltage Rating
415V
Weight
20kg
Width
410mm
