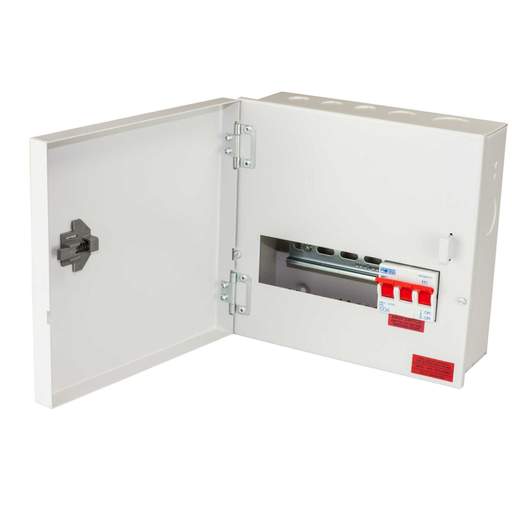

Proteus 2 Way TP+N Type B Metal Clad Distribution Board 100A Incomer
Part Code: TPXMC2
Stock Code: 0204-9535
Proteus 2 Way TP+N Type B Metal Clad Distribution Board 100A Incomer
Part Code: TPXMC2
Stock Code: 0204-9535
Features
- Incoming 100A Isolator fitted
- Units will accept 6kA and 10kA MCBs and DIN Rail mounting HRC fuse carriers
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Selection of 20, 25 and 35mm Knockouts
- Current Rating
- 100A
- Depth
- 110mm
- Dimensions
- (H)230 mm x (W)300 mm x (D)110 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Height
- 230mm
- IP Rating
- IP30
- Incoming Device
- 100A TP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 2
- Packaging Types
- Each
- Product Range
- Three Phase Consumer Units
- Standards
- BS EN 60439
- Supplied With
- 100A Isolator Incomer And Busbar To Suit
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V 415V
- Weight
- 2.48000kg
- Width
- 300mm
