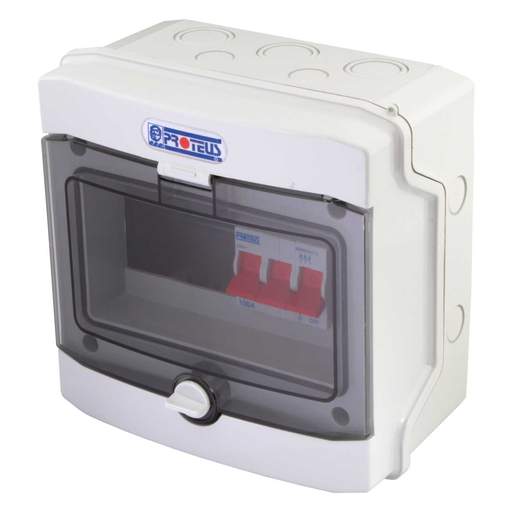

Proteus 1 Way TP Type B Distribution Board 100A Incomer IP65
Part Code: TPXIPC1
Stock Code: 0204-9541
Proteus 1 Way TP Type B Distribution Board 100A Incomer IP65
Part Code: TPXIPC1
Stock Code: 0204-9541
Features
- A comprehensive range of moulded enclosures, providing a degree of protection up to IP65
- Suitable for mounting any modular DIN Rail suitable unit, eg. MCBs and HRC fuse carriers
- Full DIN Rail for fitting wide range of modular devices
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Selection of Knockouts / Cutouts
- Current Rating
- 100A
- Depth
- 90mm
- Dimensions
- (H)150 mm x (W)190 mm x (D)90 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 150mm
- IP Rating
- IP65
- Incoming Device
- 100A TP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- Thermally Stable Plastics
- Mounting
- Surface
- Number of Outgoing Ways
- 1
- Packaging Types
- Each
- Product Range
- Three Phase Consumer Units
- Standards
- BS EN 60439
- Supplied With
- 100A Isolator Incomer And Busbar To Suit
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V 415V
- Weight
- 0.98000kg
- Width
- 190mm
