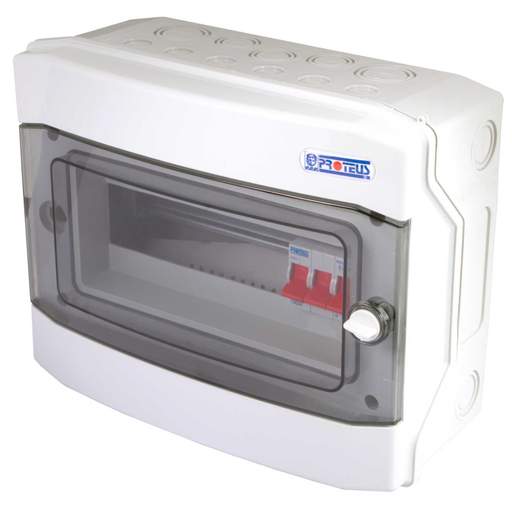

Proteus 2 Way TP Type B Distribution Board 100A Incomer IP65

Part Code: TPXIPC2

Stock Code: 0204-9544

Proteus 2 Way TP Type B Distribution Board 100A Incomer IP65

Part Code: TPXIPC2

Stock Code: 0204-9544

Delivery

14 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • A comprehensive range of moulded enclosures, providing a degree of protection up to IP65
  • Suitable for mounting any modular DIN Rail suitable unit, eg. MCBs and HRC fuse carriers
  • Full DIN Rail for fitting wide range of modular devices

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Cable Entry
Selection of Knockouts / Cutouts
Colour
Grey
Depth
115mm
Dimensions
(H)190 mm x (W)250 mm x (D)115 mm
Door Type
Top Hinged
Guarantee
1 Year
Height
190mm
IP Rating
IP65
Incoming Device
100A Isolator
Incoming Terminal Capacity
50
Material
Thermally Stable Plastics
Mounting
Surface
Number of Outgoing Ways
2
Packaging Types
Each
Product Range
Three Phase Consumer Units
Standards
BS EN 60439
Supplied With
100A Isolator Incomer And Busbar To Suit
Unspsc V18
39121110
Voltage Rating
230V 400V
Weight
1.38kg
Width
250mm
