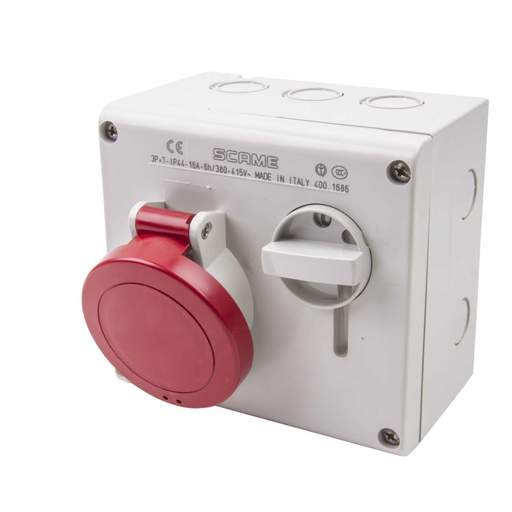

Scame Omnia 16A 3P+E 415V Interlocked Socket IP44
Part Code: 500.1686
Stock Code: 0251-3194
Scame Omnia 16A 3P+E 415V Interlocked Socket IP44
Part Code: 500.1686
Stock Code: 0251-3194
Features
- Omnia interlocked socket with screw terminals
- Thermoplastic IP44 enclosure
- Surface mounting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Scame
- Colour
- Red
- Current Rating
- 16A
- Depth
- 116mm
- Dimensions
- (H)125 mm x (W)136 mm x (D)116 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 125mm
- IP Rating
- IP44
- Material
- Thermoplastic
- Mounting
- Wall
- Number of Poles
- 3P E
- Packaging Types
- Each
- Previously Known As
- 500.M1686
- Product Range
- Omnia Series
- Standards
- EN 60309
- Terminal Type
- Screw
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.60500kg
- Width
- 136mm
