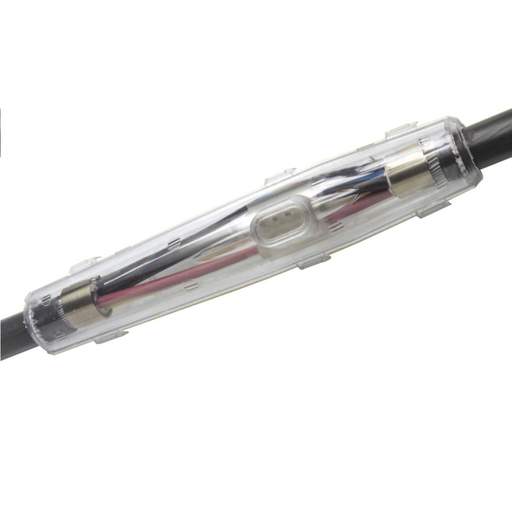

F4P S4 Straight Resin Joint Kit for Cables up to 4mm 4 Core
Part Code: S4
Stock Code: 0310-0690
F4P S4 Straight Resin Joint Kit for Cables up to 4mm 4 Core
Part Code: S4
Stock Code: 0310-0690
Delivery
105 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Designed for UK armoured cables to allow plenty of room to work
- Suitable for single and multicore polymetric and paper cables, both stranded and solid
- Shock and chemical resistant mould incorporating our innovative patented clip design
- Polycarbonate construction which results in a crystal clear UV resistant moulding
- Very high-impact strength, even at low temperatures, flame retardant material
- Earth bonding kit and mechanical connectors included
- Supplied with easy to use 2 part resin system
- Pre-filled packs ensure the correct mix ratio every time
- Suitable for voltages up to 3.6kV
- Installation instructions with clear drawings allow for quick and easy install
- 1 year guarantee refers to resin pack supplied
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Cable Size
- 4mm²
- Cable Size Range
- 0.75 - 4mm²
- Diameter
- 30mm
- Dimensions
- (L)160 mm x (Dia)30 mm
- Guarantee
- 1 Year
- Kit Contents
- Polycarbonate Shell; Resin Pack; Earth Bonding Kit; Mechanical Connectors; Safety Gloves; Sealing Tape
- Length
- 160mm
- Material
- Polycarbonate
- Maximum Cable Diameter
- 21mm
- Packaging Types
- Kit
- Standards
- IEC 50393-11:2006
- Suitable For
- Cables up to 4 Core 4mm²
- Unspsc V18
- 39121452
- Unspsc V24
- 39121452
- Voltage Rating
- 3600V
- Weight
- 0.309kg
