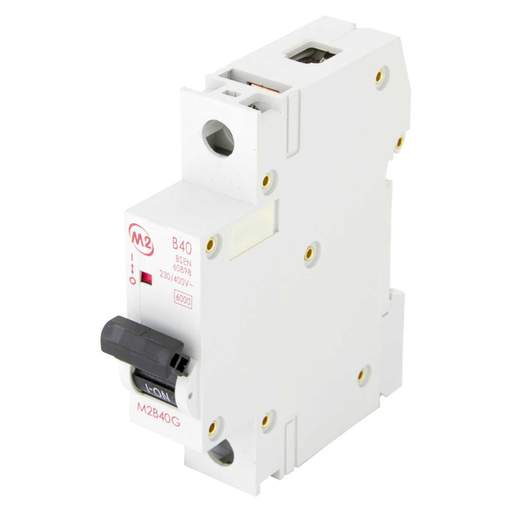

M2 40A Single Pole 6kA B Curve MCB
Part Code: M2B40
Stock Code: 0314-5201
M2 40A Single Pole 6kA B Curve MCB
Part Code: M2B40
Stock Code: 0314-5201
Features
- Thermo-magnetic, current limiting type
- Available in a range of current ratings
- Operating dolly may be locked in either the ON or OFF position
- The contacts themselves are manufactured from carefully chosen materials
- Low electrical resistance and low propensity to weld under fault conditions
- Busbar Connectivity- Thickness 3mm Max
- Calibration Temperature 30°C
- IP20
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Compliance
- BS EN 60898
- Current Rating
- 40A
- Depth
- 66.8mm
- Dimensions
- (H)87 mm x (W)17.7 mm x (D)66.8 mm
- Guarantee
- 1 Year
- Height
- 87mm
- Incoming Terminal Capacity
- 25mm²
- Material
- Urea case
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- MCBs
- Short Circuit Rating
- 6kA
- Standards
- BS EN 60898
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V 400V
- Weight
- 0.11500kg
- Width
- 17.7mm
