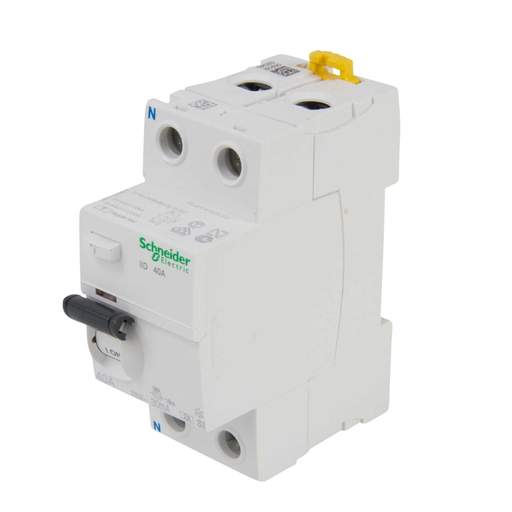

Schneider Acti9 40A 2 Pole 30mA Type A - SI RCD
Part Code: A9R61240
Stock Code: 0316-3990
Schneider Acti9 40A 2 Pole 30mA Type A - SI RCD
Part Code: A9R61240
Stock Code: 0316-3990
Delivery
4 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Type A - SI [Super Immunised] RCD, designed to avoid nuisance tripping or non-tripping in case of polluted network, lightning effect, high frequency currents, RF waves, etc
- Neutral position left
- Network type AC
- Earth leakage sensitivity 30mA
- Earth leakage protection time delay is instantaneous
- Rated breaking and making capacity Im 1500A conforming to IEC 61008
- Rated conditional short-circuit current Inc 10kA 40A
- 9mm pitches x 8
- Padlockable
- Relative humidity 95% 55°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 40A
- Depth
- 75mm
- Dimensions
- (H)81 mm x (W)36 mm x (D)75 mm
- Guarantee
- 1 Year
- Height
- 81mm
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- 2 Pole
- Packaging Types
- Each
- Previously Known As
- 23529
- Product Range
- Acti9
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- IEC 60947, IEC 61008
- Time Delay
- Instantaneous
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V
- Weight
- 0.228kg
- Width
- 36mm
