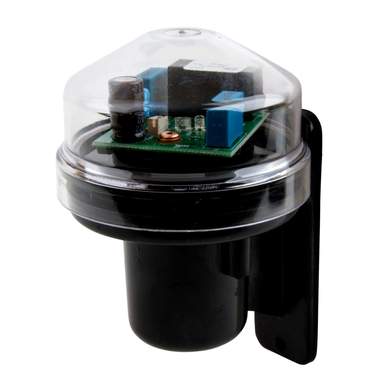

Fusion 10A Wall Mounted Electronic Photocell Kit IP65
Part Code: DL4061
Stock Code: 0337-5454
Fusion 10A Wall Mounted Electronic Photocell Kit IP65
Part Code: DL4061
Stock Code: 0337-5454
Features
- Photodiode sensor
- Maximum capacity: 10A
- Lux levels: 10 - 16 / 65 lux
- Load rating: Max 2000W [10A] incandescent, Max 600W [2.2A] LED
- NEMA socket connection
- UV stabilised polycarbonate
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Class Type
- Class 2
- Colour
- Black/Clear
- Compliance
- CE
- Current Rating
- 10A
- Diameter
- 80mm
- Dimensions
- (Dia)80 mm x (H)133 mm x (W)90 mm
- Guarantee
- 1 Year
- Height
- 133mm
- IP Rating
- IP65
- Kit Contents
- Photocell; Base Holder; Bracket; NEMA Socket; Integral Gasket; Screws and Wall Plugs
- Material
- Polycarbonate
- Maximum Load
- 10A
- Mounting
- Wall
- Operating Lux Level
- 10 - 65lx
- Packaging Types
- Box
- Projection
- 87mm
- Sensor Type
- Photodiode
- Socket Type
- NEMA
- Unspsc V18
- 39122238
- Unspsc V24
- 39122238
- Voltage Rating
- 230V
- Weight
- 0.24600kg
- Width
- 90mm
