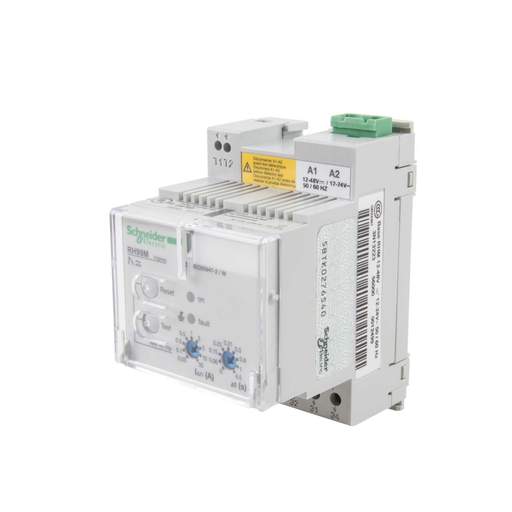

Schneider Merlin 8A RH99M Ground Fault Relay
Part Code: 56170
Stock Code: 0342-2074
Schneider Merlin 8A RH99M Ground Fault Relay
Part Code: 56170
Stock Code: 0342-2074
Features
- Residual current protection relay
- Earthing system IT, TN-S and TT
- Rated operational voltage 12-48V DC, 12-24V AC 50/60Hz
- Earth leakage protection class A si and class AC
- 9 adjustable settings
- Monitors relay/sensor link (continuous), power supply (continuous) and electronics (continuous)
- Minimum load 10mA at 12V
- Power consumption 4W
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin
- Current Rating
- 8A
- Depth
- 74mm
- Dimensions
- (H)97 mm x (W)54 mm x (D)74 mm
- Guarantee
- 18 Months
- Height
- 97mm
- Packaging Types
- Each
- Power Rating
- 4W
- Product Range
- Vigirex
- Type
- Ground Fault Relay
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 12.24V
- Weight
- 0.18200kg
- Width
- 54mm
