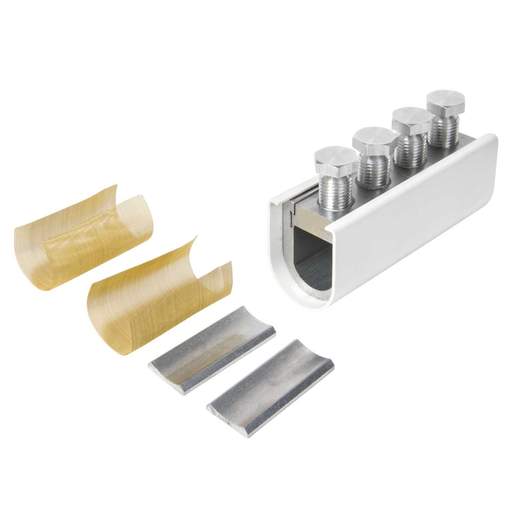

Birkett Mains Straight Mechanical Connector

Part Code: MC300

Stock Code: 0345-7543

Birkett Mains Straight Mechanical Connector

Part Code: MC300

Stock Code: 0345-7543

Delivery

29 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Manufactured from aluminium with a patented reversible bolt slide providing a greater range for the cable jointing of copper or aluminium conductors
  • Alleviates the need to bend the conductor double or to pack out
  • Will accept dissimilar metal conductors without the need to shape stranded conductors by hand
  • Precise design with shear head torque control providing high conductivity up to 160C
  • High conductivity under 130°C with a short circuit test of 250°C
  • Short circuit tested to 270C at 25800 Amps
  • Tensile tested to 18200 Newton metres
  • Compatible with the overload requirement of todays modern cables
  • Larger range of sizes accommodated in each connector

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Birkett Electric
Depth
41mm
Diameter
17mm
Dimensions
(Dia)17 mm x (H)45 mm x (W)130 mm x (D)41 mm
Guarantee
1 Year
Height
45mm
Packaging Types
Each
Product Range
Mechanical Connectors
Standards
IEC 61238
Suitable For
Copper and Aluminium Conductors, Polymeric and Paper Insulated Cables up to 400mm², Stranded and Solid Conductors
Unspsc V18
39121452
Weight
0.44kg
Width
130mm
