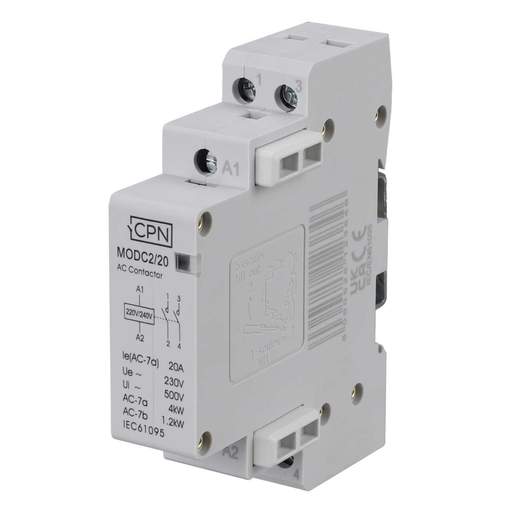

Cudis CPN 20A 4kW 2 Pole 1 Module Contactor 2 NO Contacts c/w Spacer

Part Code: MODC2/20

Stock Code: 0639-2410

Cudis CPN 20A 4kW 2 Pole 1 Module Contactor 2 NO Contacts c/w Spacer

Part Code: MODC2/20

Stock Code: 0639-2410

Delivery

Back in stock 11th November

Features

  • Fits into the standard enclosures and CPN consumer units
  • Will switch loads up to 16A
  • Ideal for controlling large lighting loads and heating systems
  • Electro-magnetic mechanism free of noise
  • NO contacts with a contact position indicator
  • Pillar terminal with clamp up to 25mm²
  • DIN rail or panel mounting
  • Recommended that space is left between adjacent contactors [spacer supplied]

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Cudis
Coil Voltage
230V AC
Contact Configuration
2 NO
Current Rating
20A
Depth
66.5mm
Dimensions
(H)85 mm x (W)18 mm x (D)66.5 mm
Guarantee
1 Year
Height
85mm
Mounting
DIN Rail
Number of Modules
1
Number of Poles
2 Pole
Packaging Types
Each
Standards
IEC 61095
Unspsc V18
39121529
Unspsc V24
39121529
Voltage Rating
230V
Weight
0.139kg
Width
18mm
