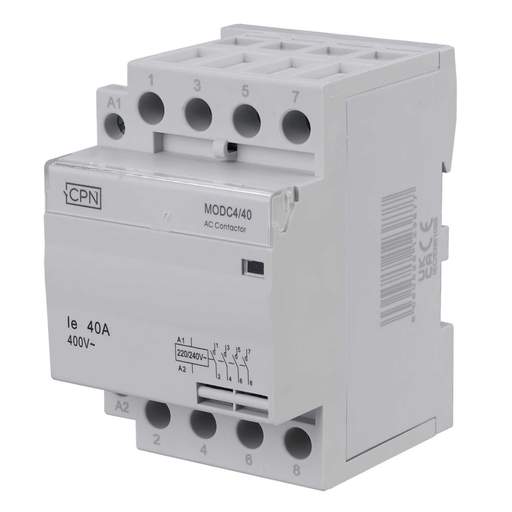

Cudis CPN 40A 4 Pole 4 Module Contactor 4 NO Contacts
Part Code: MODC4/40
Stock Code: 0639-3442
Cudis CPN 40A 4 Pole 4 Module Contactor 4 NO Contacts
Part Code: MODC4/40
Stock Code: 0639-3442
Delivery
25 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Fits into the standard enclosures and CPN consumer units
- Will switch loads up to 40A
- Ideal for controlling large lighting loads and heating systems
- Electro-magnetic mechanism free of noise
- NO contacts with a contact position indicator
- Pillar terminal with clamp up to 25mm²
- DIN rail or panel mounting
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Cudis
- Coil Voltage
- 230V AC
- Contact Configuration
- 4 NO
- Current Rating
- 40A
- Depth
- 69mm
- Dimensions
- (H)85 mm x (W)55 mm x (D)69 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- IEC 61095
- Unspsc V18
- 39121529
- Voltage Rating
- 230V
- Weight
- 0.338kg
- Width
- 55mm
