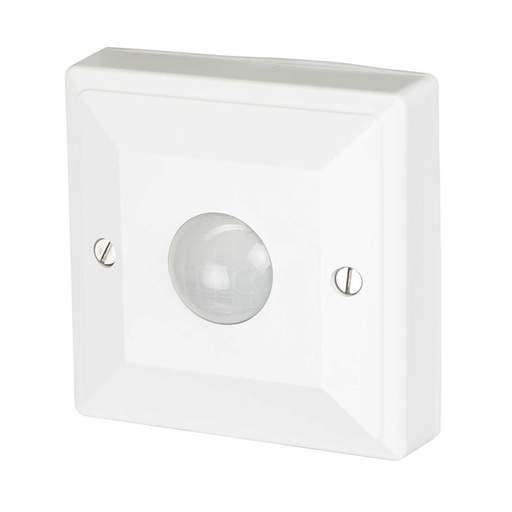

E-Matic Wall Mounted Occupancy PIR Detector
Part Code: PMWS
Stock Code: 0694-5559
E-Matic Wall Mounted Occupancy PIR Detector
Part Code: PMWS
Stock Code: 0694-5559
Features
- 3 wire connection (live, neutral, switch live)
- 110° detection angle
- 10m detection range @ 1.8m mounting height
- Auto / off control switch
- Time adjustments 10 seconds up to 40 mins
- Lux adjustments 5-1000 lux
- Switch rating of 2000W incandescent or 600W fluorescent
- Up to 2000W
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- E-Matic
- Colour
- White
- Depth
- 35mm
- Detection Angle
- 110°
- Detection Range
- 10m
- Dimensions
- (H)85 mm x (W)85 mm x (D)35 mm
- Guarantee
- 1 Year
- Height
- 85mm
- IP Rating
- IP44
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 2000W Mains Halogen - 1000W Low Voltage Halogen - 600W Fluorescent (uncompensated) - 600W LED - 150W Energy Saving - 120W
- Mounting
- Wall / Recessed / Surface
- Mounting Height
- 1.8m
- Number of Wire Connections
- 3
- Packaging Types
- Each
- Remote Control
- No
- Timer Adjustment
- 10 secs - 40 mins
- Type
- 3 Wire Occupancy Sensors
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.15160kg
- Width
- 85mm
