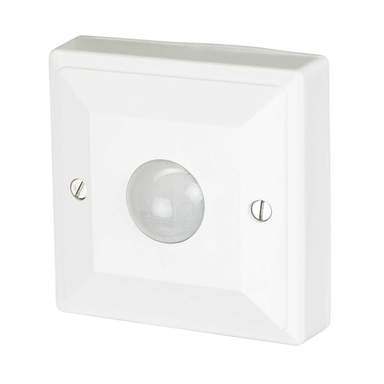

E-Matic 2 Wire Wall Mounted Occupancy Sensor
Part Code: PMWS2W
Stock Code: 0876-2671
E-Matic 2 Wire Wall Mounted Occupancy Sensor
Part Code: PMWS2W
Stock Code: 0876-2671
Features
- Up to 2000W
- Incandescent, halogen, fluorescent, LED and energy saving loads
- Pre-wired
- Spring clips for easy and quick installation
- Detection angle - 110° @ 1.7m height
- 10m radius @ 1.7m height detection distance
- 1.7 wall mounting height
- 30 - 200 lux adjustment
- Auto / off slide switch control
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- E-Matic
- Colour
- White
- Depth
- 40mm
- Detection Angle
- 110°
- Detection Range
- 10m
- Dimensions
- (H)85 mm x (W)85 mm x (D)40 mm
- Guarantee
- 1 Year
- Height
- 85mm
- IP Rating
- IP20
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 600w, Mains halogen - 400w, LV halogen - 200w, Fluorescent (uncompensated) - 150w, LED - 150w, Energy saving - 120w,
- Mounting
- Wall / Recessed / Surface
- Mounting Height
- 1.7m
- Number of Wire Connections
- 2
- Packaging Types
- Each
- Remote Control
- No
- Size
- 596mm x 596mm x 12mm
- Timer Adjustment
- 10 sec - 40 min
- Type
- Wall Mounted Occupancy Sensor
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.20090kg
- Width
- 85mm
