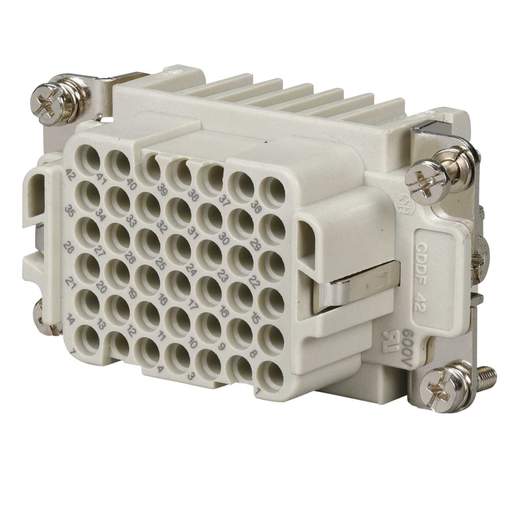

Ilme 10A 42 Pole + E Female Insert for Crimp Connections
Part Code: CDDF42
Stock Code: 0725-6527
Ilme 10A 42 Pole + E Female Insert for Crimp Connections
Part Code: CDDF42
Stock Code: 0725-6527
Features
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on the housing is self-extinguishing and is rated UL 94 V0
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
- Rated IP20
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 10A
- Dimensions
- (L)57 mm x (W)27 mm
- Finish
- Silver Plated
- Guarantee
- 1 Year
- IP Rating
- IP20
- Length
- 57mm
- Material
- Reinforced Thermoplastic
- Number of Poles
- 42P E
- Packaging Types
- Each
- Product Range
- CDD Series
- Size
- 57.27
- Standards
- EN 61984:2009-06
- Type
- Female
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 230V
- Weight
- 0.03970kg
- Width
- 27mm
