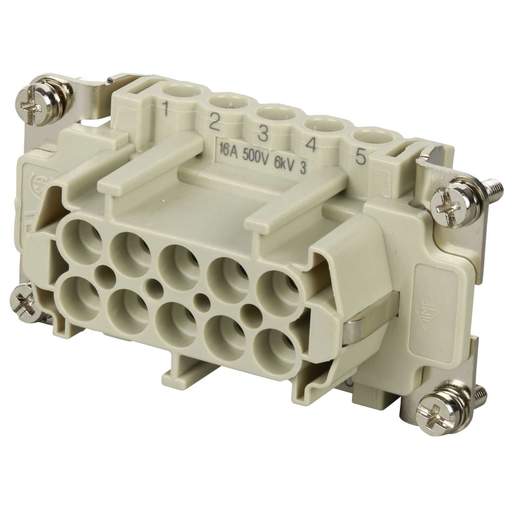

Ilme 16A 10 Pole + E Female Insert for Screw Terminal Connectors (1-10)
Part Code: CNEF10T
Stock Code: 0725-7559
Ilme 16A 10 Pole + E Female Insert for Screw Terminal Connectors (1-10)
Part Code: CNEF10T
Stock Code: 0725-7559
Features
- CNE series standard female insert fits size 57.27 enclosures and is 10 pin ground [numbered 1-10]
- Voltage rating of 500V
- Rated current of 16A
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on housing is self-extinguishing and is rated UL 94 V0
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Dimensions
- (L)57 mm x (W)27 mm
- Guarantee
- 1 Year
- IP Rating
- IP20
- Length
- 57mm
- Material
- Polycarbonate
- Number of Poles
- 10P E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- CNE Series Insert
- Size
- 57.27
- Standards
- EN 61984
- Terminal Numbers
- 1 - 10
- Type
- Female
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.07130kg
- Width
- 27mm
