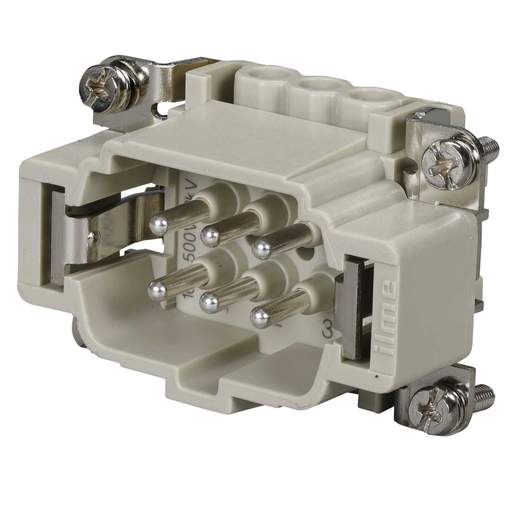

Ilme 16A 6 Pole + E Male Insert Screw Terminal Connector (1-6)
Part Code: CNEM06T
Stock Code: 0725-7580
Ilme 16A 6 Pole + E Male Insert Screw Terminal Connector (1-6)
Part Code: CNEM06T
Stock Code: 0725-7580
Features
- CNE series standard male insert fits size 44.27 enclosures and is 6 pin ground [numbered 1-6]
- Voltage rating of 500V
- Rated current of 16A
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on the housing is self-extinguishing and is rated UL 94 V0
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 16A
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Glass Reinforced Thermoplastic Silver Plated Contacts
- Number of Poles
- 6P E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- CNE Series Insert
- Size
- 44.27
- Standards
- EN 61984
- Terminal Numbers
- 1 - 6
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.05280kg
