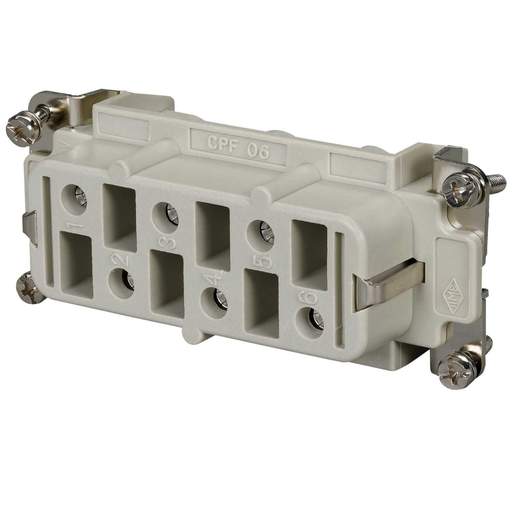

Ilme 35A 6 Pole + E Female Insert Screw Terminal Connection

Part Code: CPF06

Stock Code: 0725-7787

Ilme 35A 6 Pole + E Female Insert Screw Terminal Connection

Part Code: CPF06

Stock Code: 0725-7787

Delivery

7 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • CP series standard female insert fits size 77.27 enclosures and is 6 pin + ground
  • Current rating 35A
  • Housing is glass reinforced thermoplastic with silver plated contacts
  • Operating temperature: -40°C to 125°C [-40°F to 257°F]
  • IP20

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Colour
Grey
Compliance
EN 61984:2009-06
Current Rating
35A
Dimensions
(L)77.5 mm x (W)27 mm
Guarantee
1 Year
IP Rating
IP20
Length
77.5mm
Material
Glass Reinforced Thermoplastic Silver Plated Contacts
Number of Poles
6P+E
Packaging Types
Each
Product Range
Inserts
Size
77.27
Standards
EN 61984
Terminal Numbers
1 - 6
Type
Female
Unspsc V18
39121455
Voltage Rating
690V
Weight
0.102kg
Width
27mm
