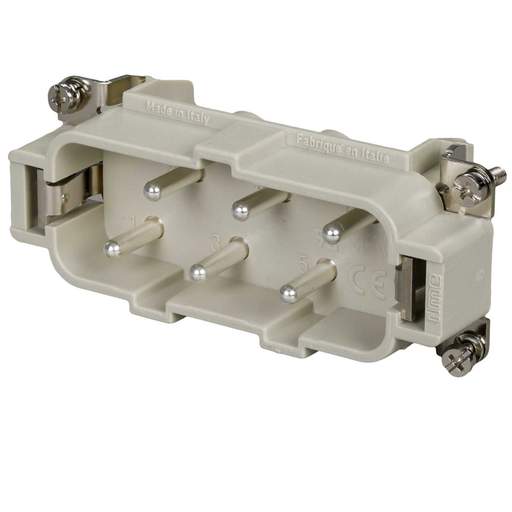

Ilme 35A 6 Pole + E Male Insert Screw Terminal Connection
Part Code: CPM06
Stock Code: 0725-7796
Ilme 35A 6 Pole + E Male Insert Screw Terminal Connection
Part Code: CPM06
Stock Code: 0725-7796
Features
- CP series standard male insert fits size 77.27 enclosures and is 6 pin ground
- Current 35A
- Housing is glass reinforced thermoplastic with silver plated contacts
- Rated IP20
- Operating temperature: -40°C to 125°C (-40°F to 257°F).
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 35A
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Glass Reinforced Thermoplastic Silver Plated Contacts
- Number of Poles
- 6P E
- Packaging Types
- Each
- Product Range
- Inserts
- Size
- 77.27
- Standards
- EN 61984
- Terminal Numbers
- 1 - 6
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Weight
- 0.09450kg
