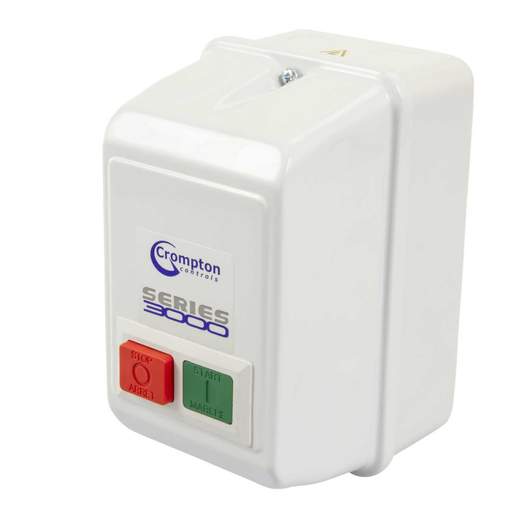

Crompton 2.2kW 230V DOL Starter with 13-18A Overload
Part Code: 3DL2CMS10
Stock Code: 1033-3069
Crompton 2.2kW 230V DOL Starter with 13-18A Overload
Part Code: 3DL2CMS10
Stock Code: 1033-3069
Features
- Weatherproof IP55
- Pressed steel complete with removable lid
- Standard coil voltages: 50/60Hz
- Surface mounting type: 3DL
- Built-in start/stop reset pushbuttons
- Hand reset thermal overloads
- Pre-wired and tested prior to despatch
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 17A
- Button Configuration
- Start / Stop Reset
- Coil Voltage
- 230V
- Colour
- Light Grey RAL7035
- Depth
- 134mm
- Dimensions
- (H)174 mm x (W)104 mm x (D)134 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 174mm
- Hp Rating
- 3metric hp
- IP Rating
- IP55
- Isolator
- No
- Material
- Pressed Steel
- Mounting
- Surface
- Number of Phases
- 1
- Overload Rating
- 13 - 18A
- Packaging Types
- Box
- Product Range
- Series 3000
- Standards
- BS 60947
- Type
- Direct On Line
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 230V
- Weight
- 0.81000kg
- Width
- 104mm
- kW Rating
- 2.2kW
