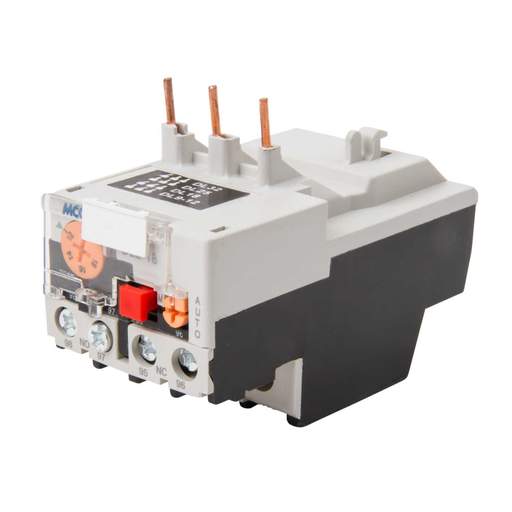

MCG 12 to 18A Overload Unit
Part Code: DL2-18
Stock Code: 0462-8596
MCG 12 to 18A Overload Unit
Part Code: DL2-18
Stock Code: 0462-8596
Features
- Manual/automatic reset
- Red stop plunger
- Adjustable overload range
- 1NO and 1NC auxiliary as standard
- Suitable for direct mounting onto contactor
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black/Grey
- Compliance
- UKCA, CE
- Depth
- 89mm
- Dimensions
- (H)48 mm x (W)45 mm x (D)89 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 48mm
- Material
- Metal/Plastic
- Mounting
- Contactor / Optional Mounting Bracket
- Overload Rating
- 12 - 18A
- Packaging Types
- Box
- Standards
- IEC/EN 60947-4-1
- Suitable For
- DL Range of Contactors
- Unspsc V18
- 39122330
- Unspsc V24
- 39122330
- Weight
- 0.16000kg
- Width
- 45mm
