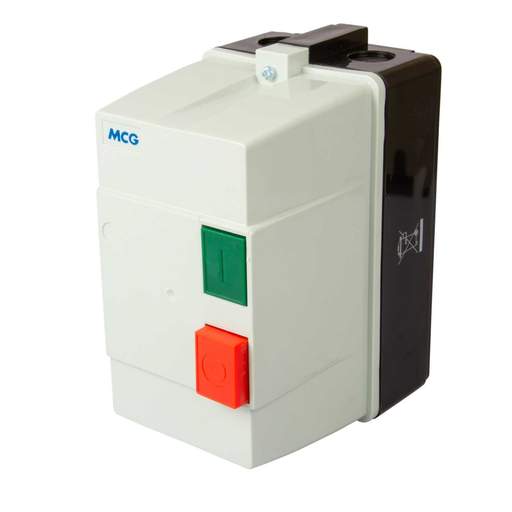

MCG 3.7kW 240V DOL without Overload

Part Code: DL4 240V

Stock Code: 0462-8686

MCG 3.7kW 240V DOL without Overload

Part Code: DL4 240V

Stock Code: 0462-8686

Delivery

13 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • No overload fitted (sold separately)
  • Large range of compatible overloads available from our MCG Industrial DL Range (part codes DL2-1.6 to DL2-25)
  • Robust plastic enclosure with start/stop pushbuttons
  • IP55 ingress protection
  • Multiple cable entries
  • Complete with DIN rail mounted pre-wired contactor
  • Suitable for applications where a metal starter is not suitable such as dockside areas, poultry sheds, chemical works etc

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Approx.Full Load Current
22A
Auxiliary Contact
1 NO
Button Configuration
Start / Stop
Coil Voltage
240V AC
Colour
Black/Grey
Compliance
CE
Contact Configuration
3 NO
Current Rating Ac3
25A
Depth
134mm
Dimensions
(H)184 mm x (W)103 mm x (D)134 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
184mm
Hp Rating
5metric hp
IP Rating
IP55
Isolator
No
Material
Plastic
Mounting
Surface
Number of Phases
1
Number of Poles
3 Pole
Overload Rating
25A Max.
Packaging Types
Box
Product Range
DL Range
Standards
BS 60947
Suitable For
Suitable for Dockside Areas, Poultry Sheds, Chemical Works etc
Type
Direct On Line
Unspsc V18
39121521
Voltage Rating
240V
Weight
1.3334kg
Width
103mm
kW Rating
3.7kW
