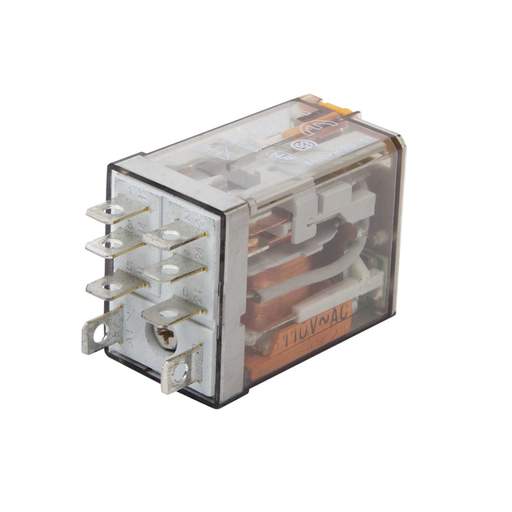

Finder 8 Pin 110V AC 12A 2 Pole Mini Plug In Relay with LED
Part Code: 5632-8110-0054
Stock Code: 0013-3852
Finder 8 Pin 110V AC 12A 2 Pole Mini Plug In Relay with LED
Part Code: 5632-8110-0054
Stock Code: 0013-3852
Features
- Power relay
- Plug-in mount
- 2 pole changeover contacts
- AgNi contact material
- Lockable test button and mechanical flag indicator
- Integral LED
- Series 96 socket required for 35mm DIN rail (EN 60715) mounting (sold separately)
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Finder
- Changeover
- Yes
- Coil Voltage
- 110V AC
- Colour
- Transparent
- Compliance
- CE, CSA, EAC, IMQ, LR, RINA, UL, VDE
- Contact Configuration
- 2 CO
- Current Rating
- 12A
- Depth
- 37.2mm
- Dimensions
- (H)27.7 mm x (W)20.7 mm x (D)37.2 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 27.7mm
- Indication Lamp
- Yes
- Led Indication
- Yes
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number of Pins
- 8
- Number of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Series 56
- Standards
- EN 61810-1:2015, EN 60664-1:2007
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V
- Weight
- 0.03600kg
- Width
- 20.7mm
