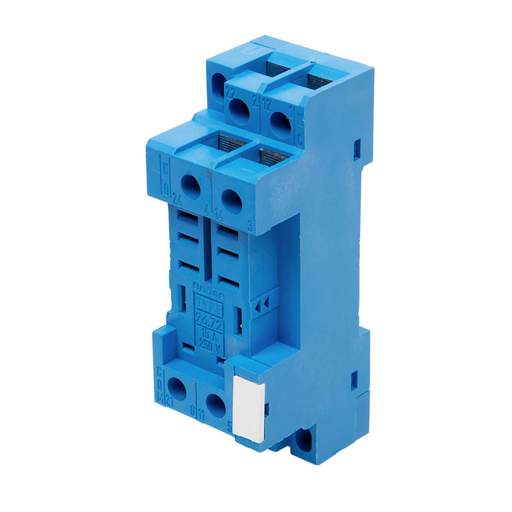

Finder 8 Pin Plug In Miniature Relay Base for 5632 Relays with Clip
Part Code: 9672
Stock Code: 0013-4182
Finder 8 Pin Plug In Miniature Relay Base for 5632 Relays with Clip
Part Code: 9672
Stock Code: 0013-4182
Features
- Socket for relay type 5632 (Series 56)
- Panel or 35mm DIN rail (EN 60715) mount
- Supplied with metal retaining clip
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Finder
- Colour
- Blue
- Compliance
- CE, CSA, EAC, IMQ, UL
- Current Rating
- 12A
- Depth
- 33.5mm
- Dimensions
- (H)78 mm x (W)27 mm x (D)33.5 mm
- Guarantee
- 1 Year
- Height
- 78mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN Rail
- Number of Pins
- 8
- Packaging Types
- Each
- Product Range
- Series 96
- Standards
- EN 61984:2009, EN 60664-1:2007
- Suitable For
- Relay Type 5632 (Series 56)
- Supplied With
- Metal Retaining Clip
- Terminal Type
- Screw
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Rating
- 250V
- Weight
- 0.05300kg
- Width
- 27mm
