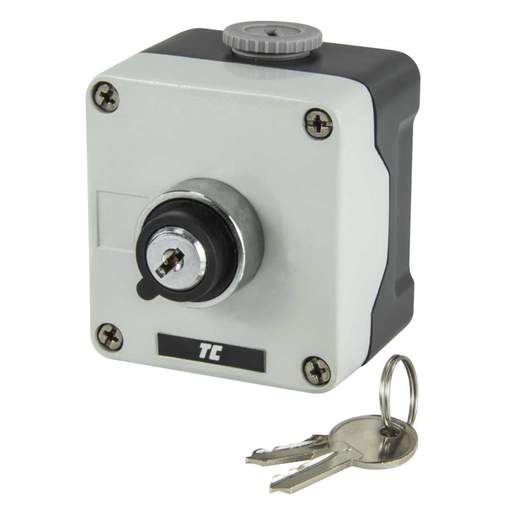

MCG 2 Position Key Switch Control Station Metal Clad IP65
Part Code: PBS1 K/M
Stock Code: 0013-6972
MCG 2 Position Key Switch Control Station Metal Clad IP65
Part Code: PBS1 K/M
Stock Code: 0013-6972
Features
- Compact dimensions
- Multiple cable entries
- Surface mounting
- IP65
- Conforms to EN60947-5-1
- Complete with legend plate stickers including: START, STOP, ON, OFF, directional arrows and many more
- c/w 2 keys and 1 x NO Contact Block
- Device is latching, the key is removable in both on and off positions
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockouts [M20]
- Colour
- Grey
- Compliance
- UKCA, CE
- Contact Configuration
- 1 NO
- Depth
- 50mm
- Dimensions
- (H)74 mm x (W)68 mm x (D)50 mm
- Guarantee
- 1 Year
- Height
- 74mm
- IP Rating
- IP65
- Material
- Die-Cast Aluminium
- Mounting
- Surface
- Number of Positions
- 2
- Number of Ways
- 1
- Operation Type
- Key Operated
- Packaging Types
- Box
- Standards
- EN60947-5-1
- Supplied With
- 2 x Keys
- Unspsc V18
- 39121565
- Unspsc V24
- 39121565
- Weight
- 0.37500kg
- Width
- 68mm
