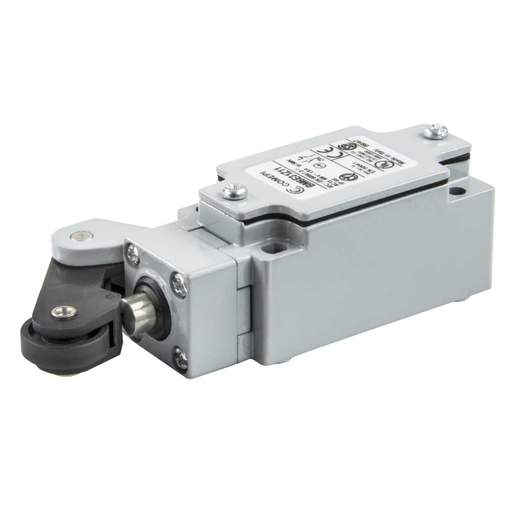

MCG Angled Roller Limit Switch
Part Code: FC311
Stock Code: 0013-5559
MCG Angled Roller Limit Switch
Part Code: FC311
Stock Code: 0013-5559
Features
- Snap-action contacts (1NO + 1NC)
- One cable inlet for M20 x 1.5 cable gland
- Metal casing IP66
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black/Grey
- Contact Configuration
- 1 NO + 1 NC
- Depth
- 43mm
- Dimensions
- (H)134 mm x (W)40 mm x (D)43 mm
- Guarantee
- 1 Year
- Head Type
- Angled Roller Lever
- Height
- 134mm
- IP Rating
- IP66
- Material
- Metal
- Packaging Types
- Box
- Standards
- IEC 60947-5-1, EN 50047
- Supplied With
- 1 x Normally Open and 1 x Normally Closed Contact
- Unspsc V18
- 39122213
- Unspsc V24
- 39122213
- Weight
- 0.25400kg
- Width
- 40mm
