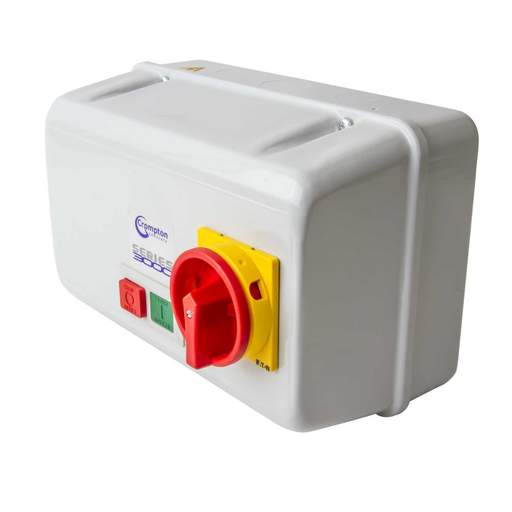

Crompton 15kW 400V 3 Phase Star Delta Starter with Isolator and 22-31A Overload
Part Code: 3SD2EMI
Stock Code: 1037-0989
Crompton 15kW 400V 3 Phase Star Delta Starter with Isolator and 22-31A Overload
Part Code: 3SD2EMI
Stock Code: 1037-0989
Features
- Weatherproof IP55
- Wye-Delta connected
- Pressed steel complete with removable lid
- Standard coil voltages: 50/60Hz
- Surface mounting type: 3SD
- Built-in start/stop reset pushbuttons
- Hand reset thermal overloads
- Pre-wired and tested prior to despatch
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 28A
- Button Configuration
- Start / Stop Reset
- Coil Voltage
- 415V
- Colour
- Light Grey RAL7035
- Depth
- 149mm
- Dimensions
- (H)184 mm x (W)284 mm x (D)149 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 184mm
- Hp Rating
- 20metric hp
- IP Rating
- IP55
- Isolator
- Yes
- Material
- Pressed Steel
- Mounting
- Surface
- Number of Phases
- 3
- Overload Rating
- 22 - 31A
- Packaging Types
- Box
- Product Range
- Series 3000
- Standards
- BS 60947
- Type
- Star Delta
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 400V
- Weight
- 2.85000kg
- Width
- 284mm
- kW Rating
- 15kW
