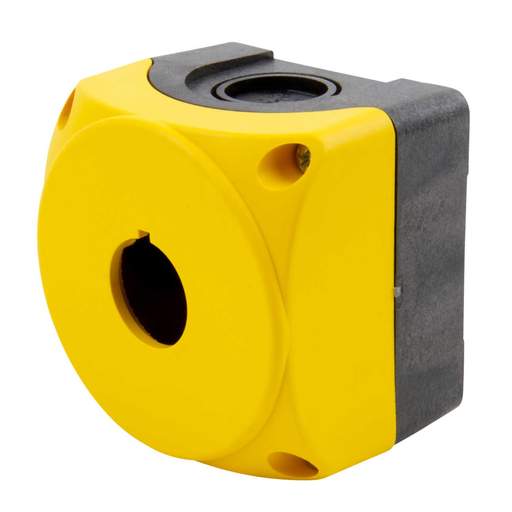

MCG 1 Way Plastic Empty Pushbutton Station Yellow / Grey IP65
Part Code: PBS1/Y
Stock Code: 0048-9184
MCG 1 Way Plastic Empty Pushbutton Station Yellow / Grey IP65
Part Code: PBS1/Y
Stock Code: 0048-9184
Features
- Compact dimensions
- Numerous cable entries
- Surface mounting
- Accepts 22.5mm pushbuttons and indicators
- Not suitable for illuminated pushbuttons
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Rear, Left Side, Top and Bottom Entry
- Colour
- Yellow
- Cut Out
- 22.5mm
- Depth
- 56mm
- Dimensions
- (H)72 mm x (W)72 mm x (D)56 mm
- Guarantee
- 1 Year
- Height
- 72mm
- IP Rating
- IP65
- Material
- Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number of Ways
- 1
- Packaging Types
- Each
- Standards
- IEC/EN 60947-1, IEC/EN 60947-5-1, UL508, CSA C22.2 n° 14
- Suitable For
- 22.5mm Pushbuttons
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.15100kg
- Width
- 72mm
