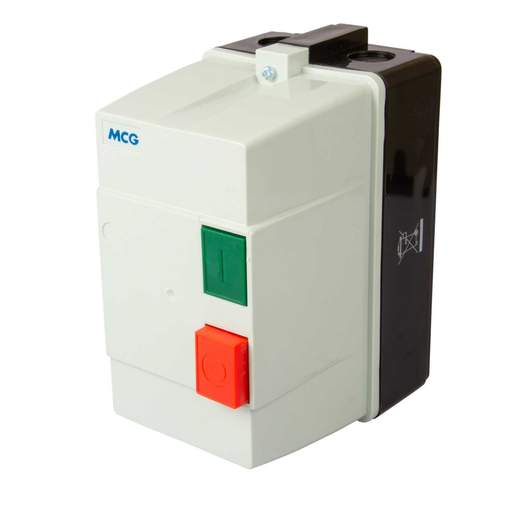

MCG 230V Direct On Line Starter
Part Code: DL4 240VBP
Stock Code: 0462-8686
MCG 230V Direct On Line Starter
Part Code: DL4 240VBP
Stock Code: 0462-8686
Features
- No overload fitted (sold separately)
- Large range of compatible overloads available from our MCG Industrial DL Range (part codes DL2-1.6 to DL2-25)
- Robust plastic enclosure with start/stop pushbuttons
- IP55 ingress protection
- Multiple cable entries
- Complete with DIN rail mounted pre-wired contactor
- Suitable for applications where a metal starter is not suitable such as dockside areas, poultry sheds, chemical works etc
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 22A
- Button Configuration
- Start / Stop
- Coil Voltage
- 240V
- Colour
- Black/Grey
- Depth
- 135mm
- Dimensions
- (H)184 mm x (W)102 mm x (D)135 mm
- Guarantee
- 1 Year
- Height
- 184mm
- Hp Rating
- 5.5metric hp
- IP Rating
- IP55
- Isolator
- No
- Material
- Plastic
- Mounting
- Surface
- Number of Phases
- 1
- Overload Rating
- 25A Max.
- Packaging Types
- Box
- Product Range
- DL Range
- Standards
- BS 60947
- Type
- Direct On Line
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 1.3334kg
- Width
- 102mm
- kW Rating
- 4kW
