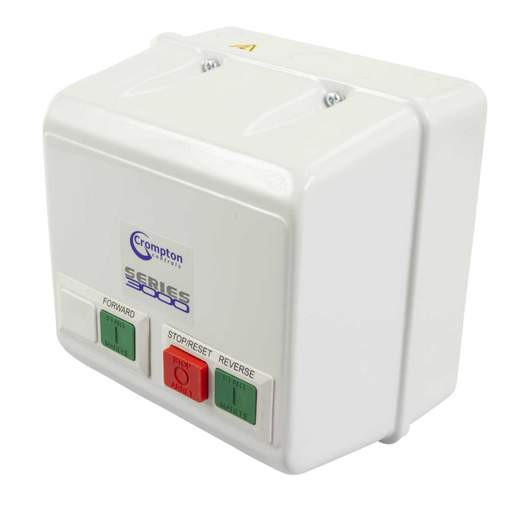

Crompton 0.75kW 400V DOL Reversing Starter with 1.6-2.5A Overload
Part Code: 3DR1EFS
Stock Code: 1033-3168
Crompton 0.75kW 400V DOL Reversing Starter with 1.6-2.5A Overload
Part Code: 3DR1EFS
Stock Code: 1033-3168
Features
- Weatherproof IP55
- Pressed steel complete with removable lid
- Standard coil voltages: 50/60Hz
- Surface mounting type: 3DR
- Built-in forward/stop reset/reverse pushbuttons
- Hand reset thermal overloads
- Pre-wired and tested prior to despatch
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 1.8A
- Button Configuration
- Forward / Stop Reset / Reverse
- Coil Voltage
- 415V
- Colour
- Light Grey RAL7035
- Depth
- 149mm
- Dimensions
- (H)184 mm x (W)184 mm x (D)149 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 184mm
- Hp Rating
- 1metric hp
- IP Rating
- IP55
- Isolator
- No
- Material
- Pressed Steel
- Mounting
- Surface
- Number of Phases
- 3
- Overload Rating
- 1.6 - 2.5A
- Packaging Types
- Box
- Product Range
- Series 3000
- Standards
- BS 60947
- Suitable For
- Conveyors and Roller Doors
- Type
- Direct On Line Reversing
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 400V
- Weight
- 2.20000kg
- Width
- 184mm
- kW Rating
- 0.75kW
