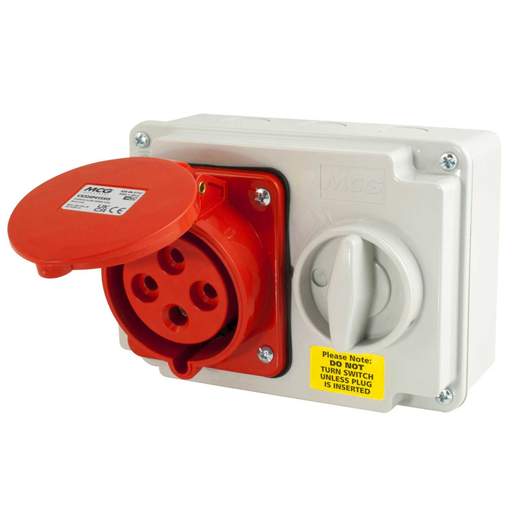

Connexs 32A 3P+E 415V Interlocked Switched Socket IP44

Part Code: CX324P415SIS

Stock Code: 1453-9177

Connexs 32A 3P+E 415V Interlocked Switched Socket IP44

Part Code: CX324P415SIS

Stock Code: 1453-9177

Delivery

66 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Suitable for small commercial and industrial applications
  • Conforms to IEC/EN 60309-1/2/4
  • Corrosion and impact resistant
  • Colour coded for fast identification of operating voltage
  • Safe and reliable
  • Padlockable handle
  • Socket Terminal Torque Setting: 1.2Nm
  • Isolator Switch and Earth Terminal Bar Torque Setting: 1.2Nm

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Connexs
Cable Entry
M20/M25 Knockout Entries
Colour
Red
Compliance
UKCA, CE
Current Rating
32A
Depth
120.5mm
Dimensions
(H)120 mm x (W)167 mm x (D)120.5 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
120mm
IP Rating
IP44
Isolator
Yes
Material
Thermoplastic
Mounting
Wall
Number of Poles
3P+E
Packaging Types
Box
Product Range
Connexs
Standards
IEC/EN 60309-1/2/4
Suitable For
Suitable for Small Commercial and Industrial Applications
Supplied With
M20 and M25 compression Glands
Unspsc V18
39121406
Voltage Rating
415V
Weight
0.648kg
Width
167mm
