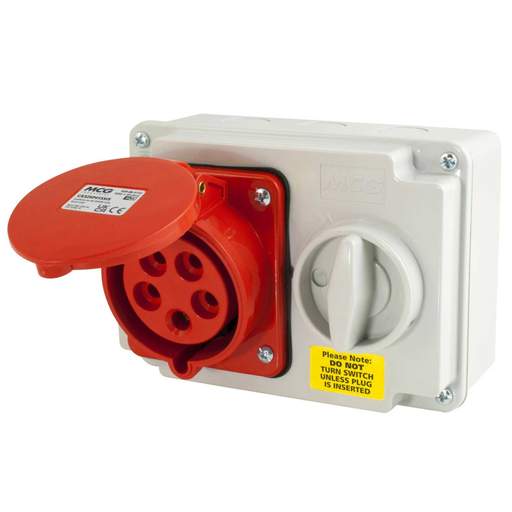

MCG 32A 3P+N+E 415V Interlocked Switched Socket IP44
Part Code: CX325P415SIS
Stock Code: 1453-9180
MCG 32A 3P+N+E 415V Interlocked Switched Socket IP44
Part Code: CX325P415SIS
Stock Code: 1453-9180
Features
- Suitable for small commercial and industrial applications
- Conforms to IEC/EN 60309-1/2/4
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Safe and reliable
- Padlockable handle
- Socket Terminal Torque Setting: 1.2Nm
- Isolator Switch and Earth Terminal Bar Torque Setting: 1.2Nm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- M20/M25 Knockout Entries
- Colour
- Red
- Compliance
- UKCA, CE
- Current Rating
- 32A
- Depth
- 120.5mm
- Dimensions
- (H)120 mm x (W)167 mm x (D)120.5 mm
- Finish
- Smooth
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 120mm
- IP Rating
- IP44
- Isolator
- Yes
- Material
- Thermoplastic
- Mounting
- Wall
- Number of Poles
- 3P+N+E
- Packaging Types
- Box
- Standards
- IEC/EN 60309-1/2/4
- Suitable For
- Suitable for Small Commercial and Industrial Applications
- Supplied With
- M20 and M25 compression Glands
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.73500kg
- Width
- 167mm
