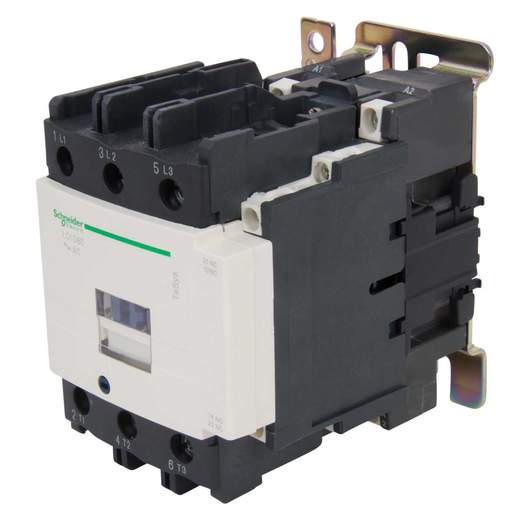

Schneider Telemecanique TeSys D 80A Contactor 3 Pole 3 NO Contacts 110V AC Coil

Part Code: LC1D80F7

Stock Code: 0084-1156

Schneider Telemecanique TeSys D 80A Contactor 3 Pole 3 NO Contacts 110V AC Coil

Part Code: LC1D80F7

Stock Code: 0084-1156

Delivery

4 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Suitable for resistive and inductive loads
  • Operating temperature: -5 to 60°C
  • With safety cover
  • For DIN rail or screw panel / base mounting
  • EN 60947-5-1, EN 60947-4-1
  • Please note product colour may vary from the product image

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Schneider Telemecanique
Auxiliary Contact
1 NO + 1 NC
Coil Voltage
110V AC
Colour
Black/Grey
Contact Configuration
3 NO
Current Rating Ac1
125A
Current Rating Ac3
80A
Depth
130mm
Dimensions
(H)127 mm x (W)85 mm x (D)130 mm
Frequency
50/60 Hz
Guarantee
18 Months
Height
127mm
IP Rating
IP2X
Mounting
DIN Rail / Plate
Number of Poles
3 Pole
Packaging Types
Each
Product Range
TeSys D
Standards
EN 60947, UL 508, CSA C22.2 No 14
Unspsc V18
39121529
Weight
1.558kg
Width
85mm
kW Rating
45kW
