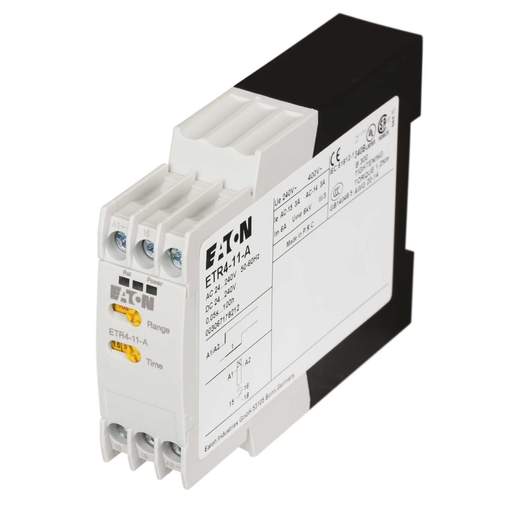

Moeller ETR4-11-A 24 - 240V AC / DC On Delay Timing Relay
Part Code: 31882
Stock Code: 0092-0302
Moeller ETR4-11-A 24 - 240V AC / DC On Delay Timing Relay
Part Code: 31882
Stock Code: 0092-0302
Features
- ETR4 series analogue on-delay electronic timing relay
- These timers are used in contactor control systems which require short rest times
- High repetition accuracy, high switching frequency and long component life span
- 10 ranges of time selections between 0.05 secs to 100 hours
- Operating voltage is 24V AC to 240V AC / 24V DC to 240V DC
- Rated operational current is 3A
- Screw connection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Grey/Black
- Compliance
- CE
- Current Rating
- 3A
- Depth
- 103mm
- Dimensions
- (H)82.5 mm x (W)22.5 mm x (D)103 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 82.5mm
- IP Rating
- IP20
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- ETR4 Timing Relays
- Standards
- IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14
- Timer Configuration
- On-Delay
- Timer Range
- 0 - 100
- Type
- Timing Relay
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Range
- 24 - 240V AC / DC
- Voltage Rating
- 230V
- Weight
- 0.06400kg
- Width
- 22.5mm
