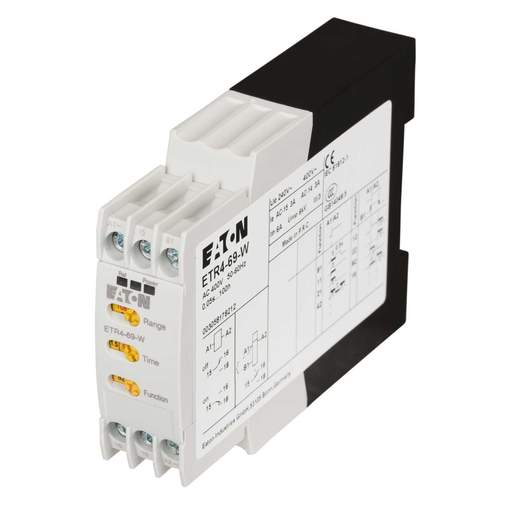

Moeller ETR4-69-W 400V AC Multifunction Timing Relay
Part Code: 31887
Stock Code: 0092-0317
Moeller ETR4-69-W 400V AC Multifunction Timing Relay
Part Code: 31887
Stock Code: 0092-0317
Features
- Multifunction timer relay
- Function delay on energization and de-energization
- Function floating contact on energization and de-energization
- Function pulse shaping
- Function flashing starting with both pause and pulse fixed time
- Clock function starting with both pause and pulse variable
- Time range : 0.05s - 100h
- Voltage range : 400V AC, 50-60Hz
- Screw connection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Grey/Black
- Compliance
- CE
- Current Rating
- 3A
- Depth
- 103mm
- Dimensions
- (H)82.5 mm x (W)22.5 mm x (D)103 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 82.5mm
- IP Rating
- IP20
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- ETR4 Timing Relays
- Standards
- IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14
- Timer Configuration
- Multifunctional
- Timer Range
- 0 - 100
- Type
- Timing Relay
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Range
- 400V AC
- Voltage Rating
- 400V
- Weight
- 0.06400kg
- Width
- 22.5mm
