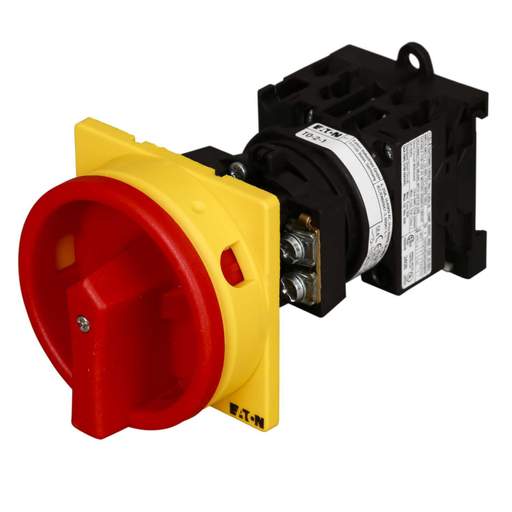

Moeller T0-2-1/V/SVB 20A 3P Rear Mounting Isolator Switch IP65
Part Code: 43619
Stock Code: 0094-0372
Moeller T0-2-1/V/SVB 20A 3P Rear Mounting Isolator Switch IP65
Part Code: 43619
Stock Code: 0094-0372
Features
- Interlocked in the ON position to prevent panel door being opened while switch is on
- Lockable in the OFF position, with up to three padlocks
- Emergency switching off/emergency stop function
- Red rotary handle and yellow locking ring
- Three- pole switches accept add-on switched neutral and auxiliary contacts
- Built in N and PE terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Black/Red/Yellow
- Compliance
- CSA, UL
- Current Rating
- 20A
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- IP Rating
- IP65
- Motor Power Ratingat415 V
- 5.5kW
- Mounting
- Rear
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Switch Disconnectors
- Standards
- IEC EN 60947, VDE 0660, IEC EN 60204, IEC EN 60947
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 690V
- Weight
- 0.21000kg
