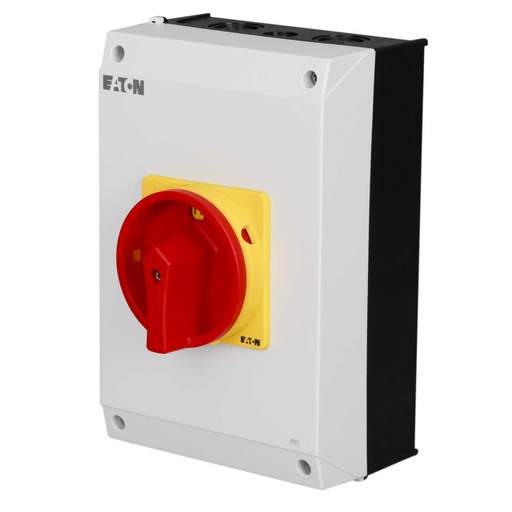

Moeller P3-63/I4/SVB 63A 3 Pole Rotary Isolator Switch IP65
Part Code: 207343
Stock Code: 1592-4814
Moeller P3-63/I4/SVB 63A 3 Pole Rotary Isolator Switch IP65
Part Code: 207343
Stock Code: 1592-4814
Features
- Insulated enclosed padlockable switch disconnector
- Emergency switching off / emergency stop function
- Red rotary handle and yellow locking ring
- Triple Pole
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Red/Yellow/Grey
- Compliance
- CSA, UL
- Current Rating
- 63A
- Depth
- 135mm
- Dimensions
- (H)240 mm x (W)160 mm x (D)135 mm
- Guarantee
- 1 Year
- Height
- 240mm
- IP Rating
- IP65
- Material
- High Impact Thermoplastic
- Mounting
- Surface
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- Switch Disconnectors
- Standards
- IEC EN 60947, VDE 0660, IEC EN 60204, IEC EN 60947
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 415V
- Weight
- 0.04440kg
- Width
- 160mm
- kW Rating
- 30kW
