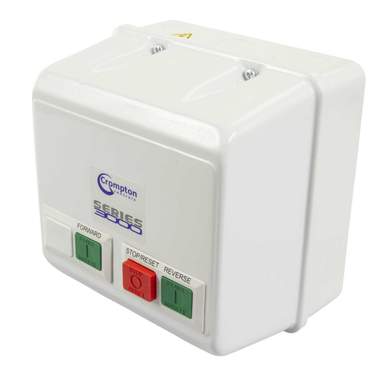

Crompton 1.5kW 230V DOL Reversing Starter without Overload
Part Code: 3DR1CZS10
Stock Code: 1494-0358
Crompton 1.5kW 230V DOL Reversing Starter without Overload
Part Code: 3DR1CZS10
Stock Code: 1494-0358
Delivery
3 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- No overload fitted (sold separately)
- Large range of compatible overloads available from our Crompton Controls CC range (part codes CR09/... or CR12/...)
- Weatherproof IP55
- Pressed steel complete with removable lid
- Standard coil voltages: 50/60Hz
- Surface mounting type: 3DR
- Built-in forward/stop reset/reverse pushbuttons
- Pre-wired and tested prior to despatch
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 12A
- Button Configuration
- Forward / Stop Reset / Reverse
- Coil Voltage
- 230V
- Colour
- Light Grey RAL7035
- Depth
- 149mm
- Dimensions
- (H)184 mm x (W)184 mm x (D)149 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 184mm
- Hp Rating
- 2metric hp
- IP Rating
- IP55
- Isolator
- No
- Material
- Pressed Steel
- Mounting
- Surface
- Number of Phases
- 1
- Overload Rating
- 12A Max.
- Packaging Types
- Box
- Product Range
- Series 3000
- Standards
- BS 60947
- Suitable For
- Conveyors and Roller Doors
- Type
- Direct On Line Reversing
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 230V
- Weight
- 0.26kg
- Width
- 184mm
- kW Rating
- 1.5kW
