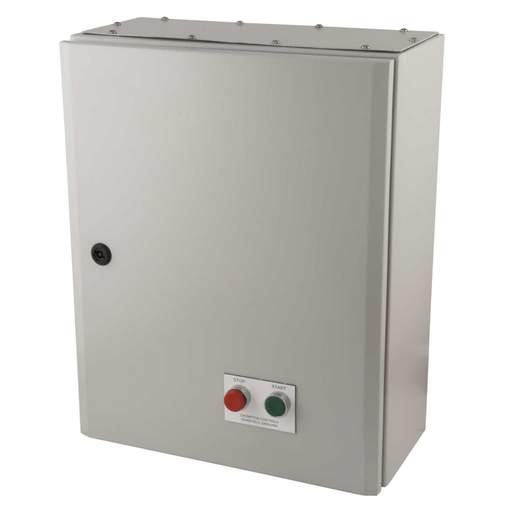

Crompton 45kW 400V 3 Phase Star Delta Starter with 65-86A Overload
Part Code: 3SD05ETS
Stock Code: 1581-1606
Crompton 45kW 400V 3 Phase Star Delta Starter with 65-86A Overload
Part Code: 3SD05ETS
Stock Code: 1581-1606
Features
- Weatherproof IP55
- Wye-Delta connected
- Pressed steel complete with hinged door
- Standard coil voltages: 50/60Hz
- Surface mounting type: 3SD
- Built-in start/stop reset pushbuttons
- Hand reset thermal overloads
- Pre-wired and tested prior to despatch
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 79A
- Button Configuration
- Start / Stop Reset
- Coil Voltage
- 415V
- Colour
- Light Grey RAL7035
- Depth
- 200mm
- Dimensions
- (H)400 mm x (W)300 mm x (D)200 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 400mm
- Hp Rating
- 60metric hp
- IP Rating
- IP55
- Isolator
- No
- Material
- Pressed Steel
- Mounting
- Surface
- Number of Phases
- 3
- Overload Rating
- 65 - 86A
- Packaging Types
- Box
- Product Range
- Series 3000
- Standards
- BS 60947
- Type
- Star Delta
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 400V
- Weight
- 8.60000kg
- Width
- 300mm
- kW Rating
- 45kW
