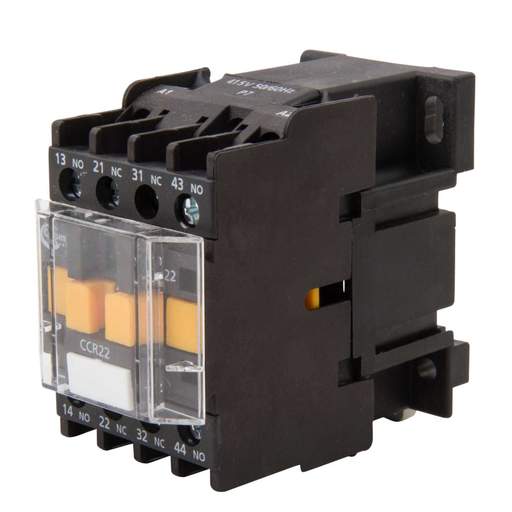

Crompton Control Circuit Relay 2 NO + 2 NC Contacts 415V Coil
Part Code: CCR22 415V
Stock Code: 1581-1630
Crompton Control Circuit Relay 2 NO + 2 NC Contacts 415V Coil
Part Code: CCR22 415V
Stock Code: 1581-1630
Features
- Four pole contactor style control relay
- Simple and robust construction
- High mechanical and electrical life
- Coil fitted as standard
- For DIN rail or panel mounting
- Cage type cable terminals
- CBF/CBS auxiliary contact blocks and CX type spare coils can be fitted
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 415V AC
- Colour
- Black
- Contact Configuration
- 2 NO 2 NC
- Current Rating
- 10A
- Depth
- 80mm
- Dimensions
- (H)74 mm x (W)45 mm x (D)80 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 74mm
- Material
- Metal/Plastic
- Mounting
- DIN Rail / Screw Mounting
- Packaging Types
- Box
- Product Range
- CC Range
- Standards
- IEC 60947, EN 60947
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 1000V
- Weight
- 0.05670kg
- Width
- 45mm
