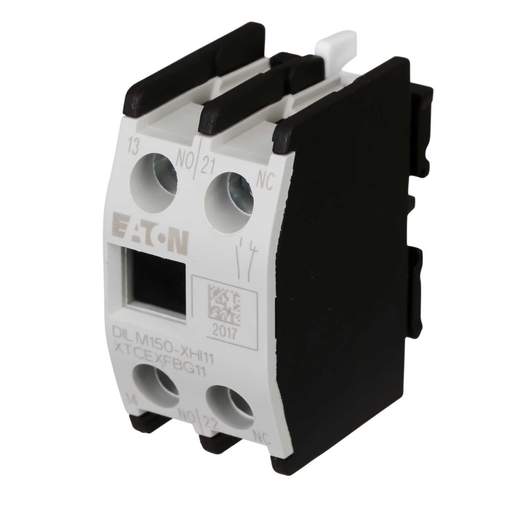

Moeller DILM150-XHI11 Auxiliary Contact Block 1 NO + 1 NC Contacts

Part Code: 277946

Stock Code: 1590-9847

Moeller DILM150-XHI11 Auxiliary Contact Block 1 NO + 1 NC Contacts

Part Code: 277946

Stock Code: 1590-9847

Delivery

3 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Interlocked opposing contacts for standard applications
  • Operating temperature -25 - 60°C
  • Screw terminals
  • EN 60947-4-1
  • Suitable for DILM40 - DILM65 Contactors

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Black/Grey
Compliance
CE
Contact Configuration
1 NO + 1 NC
Current Rating
16A
Frequency
50/60 Hz
Guarantee
1 Year
Mounting
Front
Number of Poles
2 Pole
Operating Temperature Range
-25 - 60°C
Packaging Types
Each
Product Range
DILM
Standards
IEC EN 60947, UL 508, CSA C22.2 No 14-05; CE Marking
Suitable For
DILM40, DILM50, DILM65, DILMP63
Unspsc V18
39121529
Weight
0.009kg
