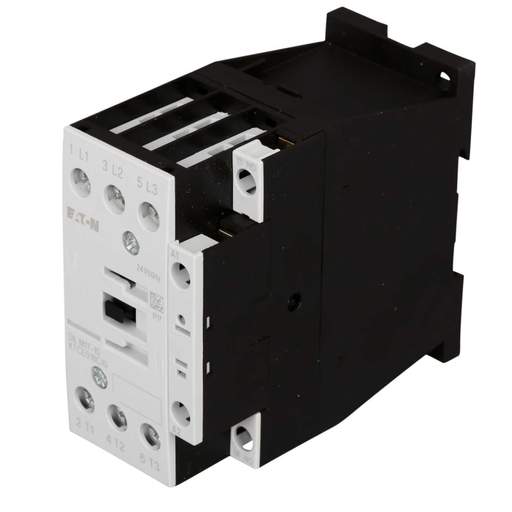

Moeller DILM17-10 7.5kW Contactor 1 NO Contacts 24V AC Coil
Part Code: 276991
Stock Code: 1590-9991
Moeller DILM17-10 7.5kW Contactor 1 NO Contacts 24V AC Coil
Part Code: 276991
Stock Code: 1590-9991
Features
- Box terminal with double coupling
- Screw connections
- DIN rail or panel mounted
- EN 60947-4-1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 24V AC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 40A
- Current Rating Ac3
- 18A
- Depth
- 97.4mm
- Dimensions
- (H)85 mm x (W)45 mm x (D)97.4 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- Mounting
- DIN Rail / Plate
- Number of Poles
- 3 Pole
- Operating Temperature Range
- -25 - 60°C
- Packaging Types
- Each
- Product Range
- DILM
- Standards
- IEC EN 60947, UL 508, CSA C22.2 No 14; CE Marking
- Storage Temperature Range
- -40 - 80°C
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 1.50000kg
- Width
- 45mm
- kW Rating
- 7.5kW
