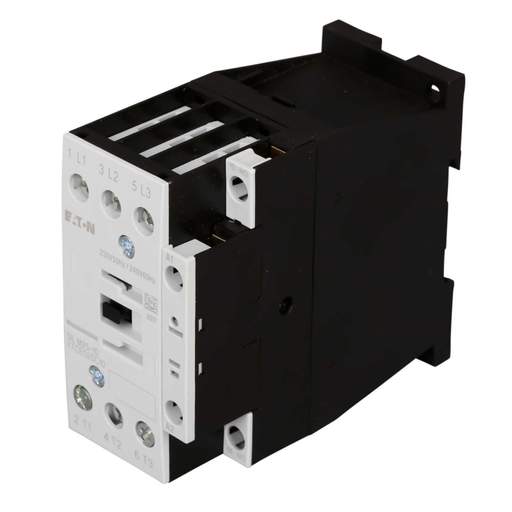

Moeller DILM25-10 11kW Contactor 1 NO Contacts 230V AC Coil

Part Code: 277132

Stock Code: 1591-0108

Moeller DILM25-10 11kW Contactor 1 NO Contacts 230V AC Coil

Part Code: 277132

Stock Code: 1591-0108

Delivery

11 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Box terminal with double coupling
  • Screw connections
  • DIN rail or panel mounted
  • EN 60947-4-1

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Auxiliary Contact
1 NO
Coil Voltage
230V AC
Colour
Black/Grey
Contact Configuration
3 NO
Current Rating Ac1
45A
Current Rating Ac3
25A
Depth
97.4mm
Dimensions
(H)85 mm x (W)45 mm x (D)97.4 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
85mm
Mounting
DIN Rail / Plate
Number of Poles
3 Pole
Operating Temperature Range
-25 - 60°C
Packaging Types
Each
Product Range
DILM
Standards
IEC EN 60947, UL 508, CSA C22.2 No 14; CE Marking
Storage Temperature Range
-40 - 80°C
Unspsc V18
39121529
Weight
0.009kg
Width
45mm
kW Rating
11kW
