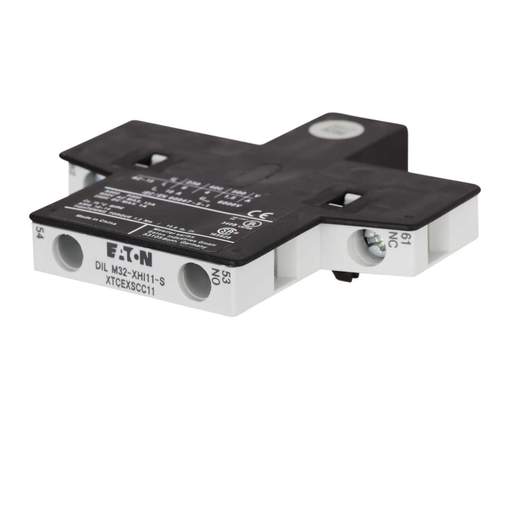

Moeller DILM32-XHI11-S Auxiliary Contact Module 1 NO + 1 NC Contacts
Part Code: 101371
Stock Code: 1591-0150
Moeller DILM32-XHI11-S Auxiliary Contact Module 1 NO + 1 NC Contacts
Part Code: 101371
Stock Code: 1591-0150
Features
- Interlocked opposing contacts for standard applications
- Operating temperature -25 - 60°C
- Screw terminals
- EN 60947-4-1
- Suitable for DILM17 - DILM32 Contactors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Black/Grey
- Compliance
- CE
- Contact Configuration
- 1 NO 1 NC
- Current Rating
- 16A
- Depth
- 42mm
- Dimensions
- (W)36 mm x (D)42 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Mounting
- Side
- Number of Poles
- 2 Pole
- Operating Temperature Range
- -25 - 60°C
- Packaging Types
- Each
- Product Range
- Accessories
- Standards
- IEC EN 60947, UL 508, CSA C22.2 No 14
- Suitable For
- DILM17, DILM25, DILM32, DILM38, DILMP32-10, DILMP45-10
- Type
- Auxiliary Contact Module
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.07000kg
- Width
- 36mm
