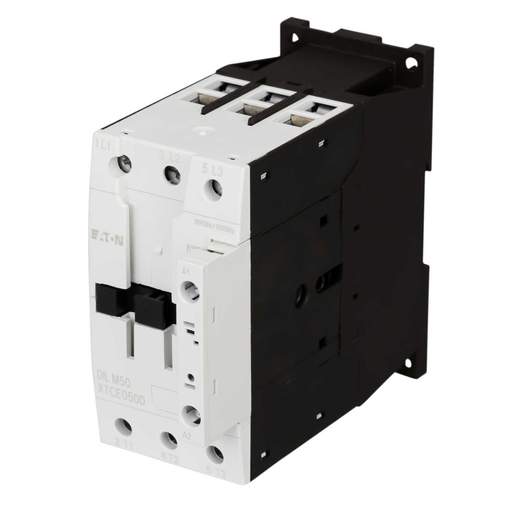

Moeller DILM50 22kW Contactor 110V AC Coil

Part Code: 277827

Stock Code: 1591-0297

Moeller DILM50 22kW Contactor 110V AC Coil

Part Code: 277827

Stock Code: 1591-0297

Delivery

4 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Box terminal with double coupling
  • Screw connections
  • DIN rail or panel mounted
  • EN 60947-4-1

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Coil Voltage
110V AC
Compliance
CE
Contact Configuration
3 NO
Current Rating Ac1
80A
Current Rating Ac3
50A
Depth
132.1mm
Dimensions
(H)115 mm x (W)77 mm x (D)132.1 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
115mm
Mounting
DIN Rail / Plate
Number of Poles
3 Pole
Operating Temperature Range
-25 - 60°C
Packaging Types
Each
Product Range
DILM
Standards
IEC EN 60947, UL 508, CSA C22.2 No 14
Storage Temperature Range
-40 - 80°C
Unspsc V18
39121529
Weight
1.5kg
Width
77mm
kW Rating
22kW
