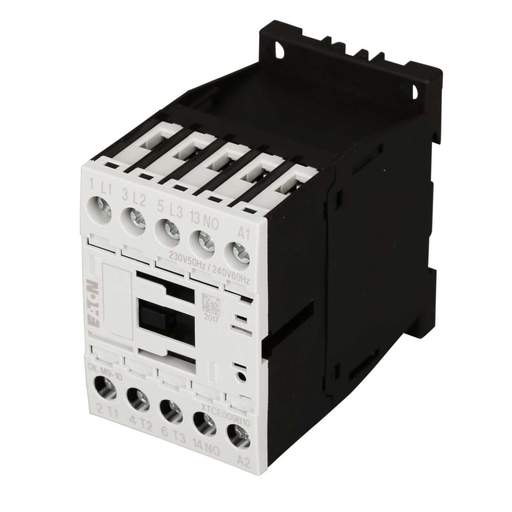

Moeller DILM9-10 4kW Contactor 1 NO Contacts 230V AC Coil
Part Code: 276690
Stock Code: 1591-0573
Moeller DILM9-10 4kW Contactor 1 NO Contacts 230V AC Coil
Part Code: 276690
Stock Code: 1591-0573
Features
- Box terminal with double coupling
- Screw connections
- DIN rail or panel mounted
- EN 60947-4-1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 230V AC
- Colour
- Black/Grey
- Compliance
- CE
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 22A
- Current Rating Ac3
- 9A
- Depth
- 117mm
- Dimensions
- (H)68 mm x (W)45 mm x (D)117 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 68mm
- IP Rating
- IP20
- Mounting
- DIN Rail / Plate
- Number of Poles
- 3 Pole
- Operating Temperature Range
- -25 - 60°C
- Packaging Types
- Each
- Product Range
- DILM
- Standards
- IEC EN 60947, VDE 0660
- Type
- 4kW 400V AC Operated Conatctor 1 N/O
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 1.50000kg
- Width
- 45mm
- kW Rating
- 4kW
