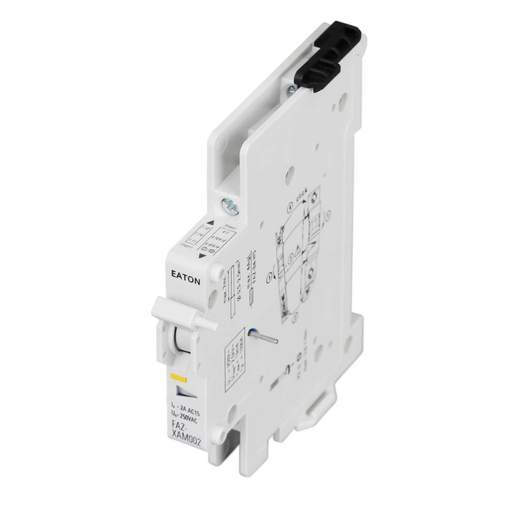

Moeller FAZ-XAM002 MCB Auxiliary Contact
Part Code: 262414
Stock Code: 1591-4059
Moeller FAZ-XAM002 MCB Auxiliary Contact
Part Code: 262414
Stock Code: 1591-4059
Features
- Small selector screw changes mode
- Two Form C [changeover] contacts
- Installs on left side of MCB or shunt trip
- Auxiliary contacts switch when MCB is tripped electrically or manually
- Trip indicating contact switches only when MCB is tripped electrically
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Depth
- 70.5mm
- Dimensions
- (H)80 mm x (W)17.5 mm x (D)70.5 mm
- Guarantee
- 1 Year
- Height
- 80mm
- Mounting
- DIN Rail
- Number of Poles
- Single Pole
- Operating Temperature Range
- -5 - 40°C
- Packaging Types
- Each
- Standards
- EN 60947, EN 60898
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 230V
- Weight
- 0.60000kg
- Width
- 17.5mm
